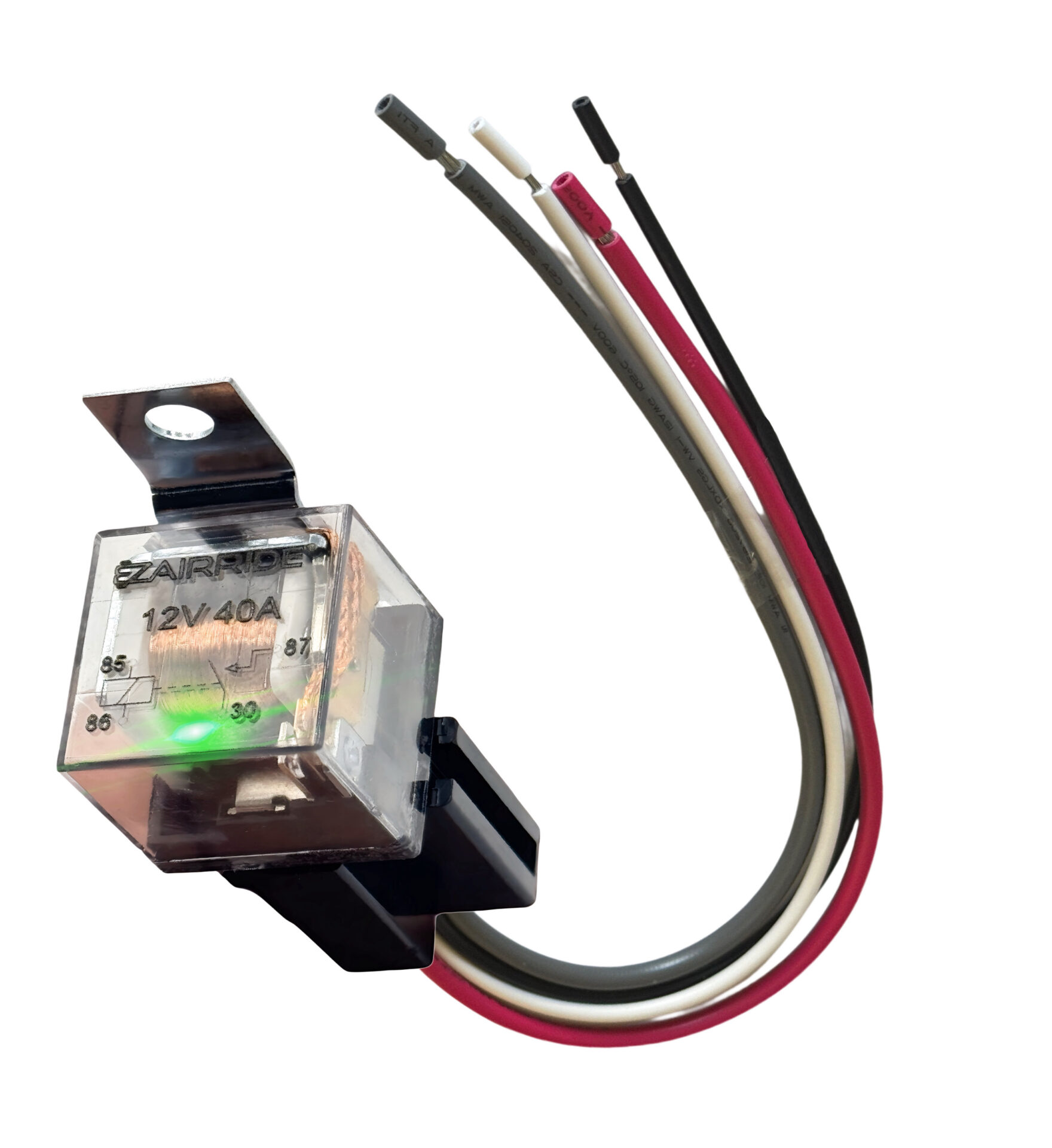

LED Diagnostic 40 AMP Relay & Plug-In Harness (2-Pack)
Visual Diagnostics: If you’ve ever spent an afternoon with a multimeter trying to figure out why your compressor won’t kick on, you know the “Black Hole” effect of standard relays. You’re left guessing if the relay clicked, if the trigger wire is dead, or if the unit itself has failed.

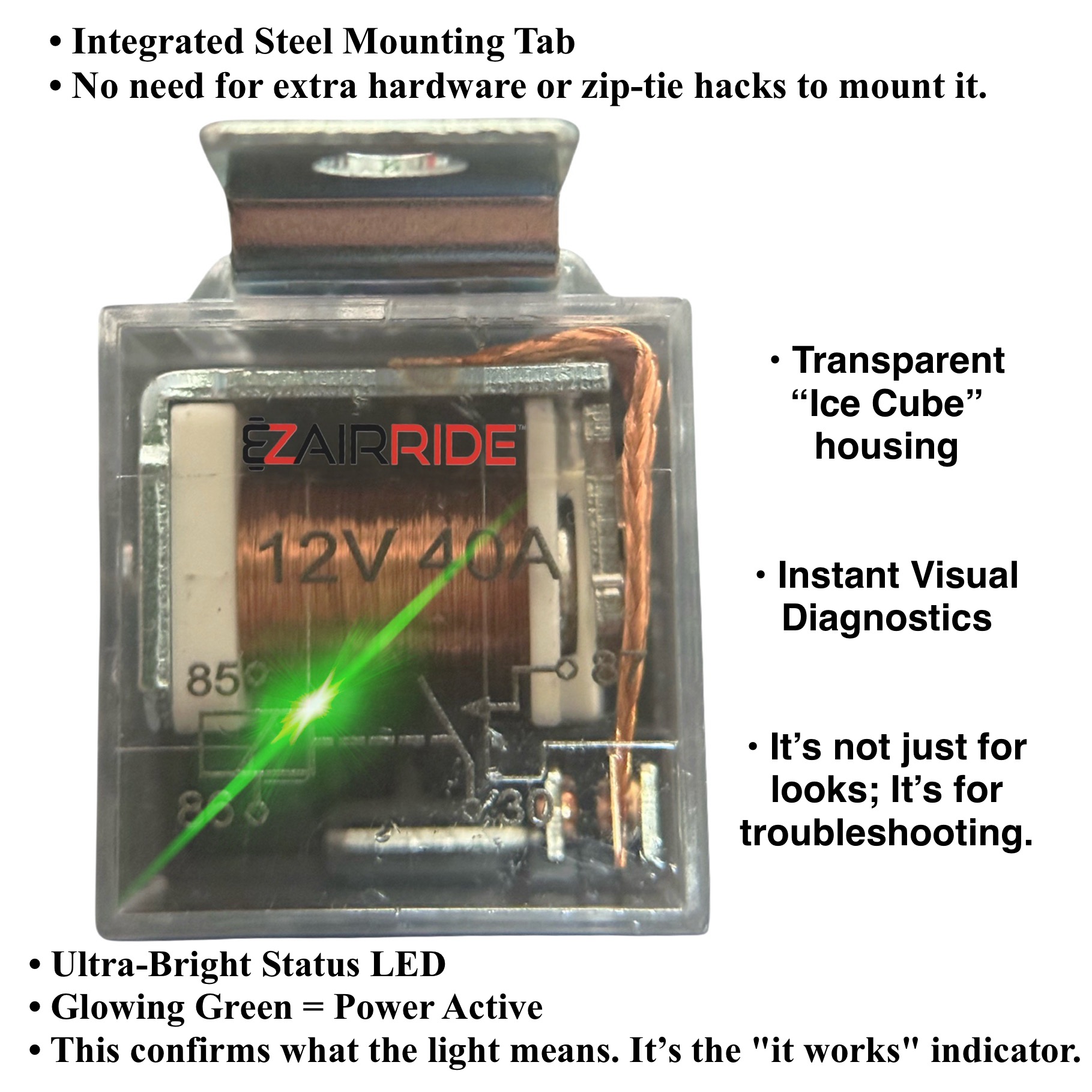

We designed this relay to end that frustration by providing a clear line of sight into your system’s status, allowing you to diagnose an issue in seconds instead of hours. Our Clearview diagnostic relays are designed to eliminate the guesswork; featuring a transparent (ice cube) housing and a built-in green LED status indicator, you get instant visual feedback the moment your switch is flipped.
• Green Light ON: Your trigger signal is reaching the relay.
• Green Light OFF: Check your switch, fuse, or wiring.
Heavy-Duty Pressure Switch Protection: We didn’t just stop at the LED. In an air ride system, your pressure switch is the brains of the operation, but it’s also the most vulnerable component. Constant cycling of the compressor and temperature changes naturally produce moisture in the tank; over time, that moisture can disrupt a pressure switch, leading to erratic behavior or a compressor that won’t cycle on when you need it most.
We protect your investment at the source. Our Relay and Plug-In Harness handles the heavy electrical load by utilizing 12-gauge tinned copper heavy-duty wire for the power source lead and the compressor lead. This thick-gauge wiring creates a high-conductivity “buffer” that takes the high-amperage strain off the internal contacts of your pressure switch to help ensure long-term reliability.
• 12-Inch Extended Leads: Most generic pigtails only provide 5 or 6 inches of wire, which barely clears the relay housing. This forces your butt connectors too close to the relay, concentrating heat in a tiny area and making it impossible to tuck your harness for a clean look. We provide 12-inch leads to give you the “slack” needed for better thermal dissipation and a professional, stress-free installation that stays away from the mounting point.
• 12-Gauge Tinned Copper (UL 1015) : We use heavy-duty 12-gauge tinned copper wire for the main power circuits (Pins 30 & 87). This ensures maximum current flow to your compressors while minimizing resistance heat and protecting against voltage drop.
• 16-Gauge Trigger Wires (UL 1015): While many generic kits use thinner 18-gauge CCA (Copper Clad Aluminum) wire – not just for the trigger, but for the main power leads – that thinner, cheaper wire is highly prone to overheating under load. We utilize 16-gauge tinned copper for our trigger wires (Pins 85 and 86) to ensure a stable, reliable signal that handles the high-temperature environment of a custom automotive build without compromise.
• Directional Color Coding: Simplifies installation with Red (Power), Gray (Compressor), Black (Ground), and White (Pressure Switch Trigger). No guesswork, no “rainbow” wiring.
Specs:
• Rating: 30/40 Amp 12V DC
• Configuration: 4-Pin SPST (Single Pole Single Throw)
• Protection: “Moisture-resistant” interlocking socket
• Includes: (2) Clear LED Relays and (2) 12″ Heavy-Duty Pigtail Harnesses
Behind the Scenes: The Anatomy of a High-Performance Relay
For the builders who want the technical details, here is why we chose these specific components to protect your air system.
1. The Relay as the “Electrical Shield”
The pressure switch is the brain of your system, but it isn’t built to handle the “muscle.” Without a relay, the heavy amperage load of a compressor flows directly through the tiny, delicate contacts inside your pressure switch. This leads to arcing, heat-damage, and eventually, a switch that welds shut. Our relay acts as a buffer. The pressure switch sends a tiny one amp trigger signal, and the relay takes the heavy electrical hit so your switch doesn’t have to.
2. Eliminating Resistance Heat
Electricity is like water—if you try to shove a firehose worth of volume through a drinking straw (like the thin 18-gauge wire found in cheap kits), you get resistance. In an electrical system, resistance equals heat. Thin wire can get hot enough to melt relay sockets and fuse holders. We utilize 12-gauge heavy-duty wire for the power and compressor leads to ensure a wide-open path for electricity, keeping the system cool and your voltage high.
3. The Tinned Copper Advantage
In the air suspension world, moisture is a constant. Standard copper wire is prone to “wicking” moisture, which leads to the “green crust” (oxidation) that destroys conductivity. We use Tinned Copper, which is high-grade copper coated in a protective layer of tin. This ensures your leads remain corrosion-resistant and highly conductive for years, even in high-moisture environments.
